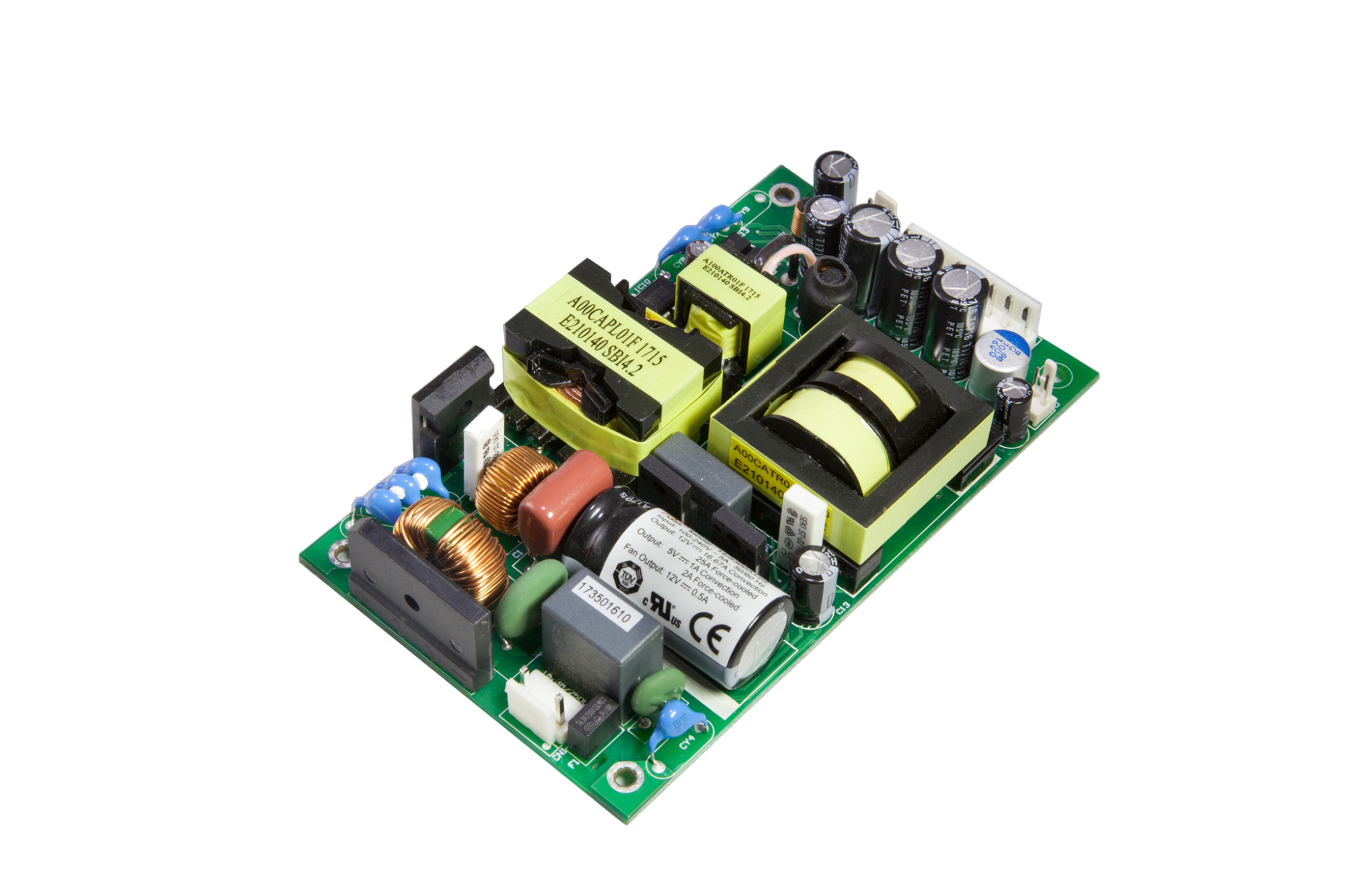

300Watts AC-DC 3x5 Inch ITE Open Frame Power Supply
TES300A Series
Features a 3x5" open frame design with a low profile of just 1.2 inches, perfect for space-constrained applications
Delivers up to 300W with force cooling and 220W under convection cooling for versatile system requirements
Achieves an efficiency up to 94% and a no-load input power below 0.5W, significantly reducing standby consumption
Fully certified with EMI EN55032 and ITE safety approvals UL/IEC 60950-1 & UL/IEC/EN 62368-1
Includes a 12V fan output, optional 5V standby output, and remote on/off control
|
Model information |
|
||||||||
|
Model |
Output Voltage |
Main Output (Current, Watt) |
12V Fan Output |
5V standby output |
Efficiency (Convection) |
||||
|
Convection |
Force-Cooled With 10CFM |
Convection |
Force-Cooled |
||||||
|
TES300A12 |
12Vdc |
16.67A |
200W |
25A |
300W |
0.5A |
NA |
94% |
|
|
TES300A24 |
24Vdc |
9.17A |
220W |
12.5A |
300W |
0.5A |
95% |
||
|
TES300A48 |
48Vdc |
4.59A |
220W |
6.25A |
300W |
0.5A |
95% |
||
|
TES300A12S |
12Vdc |
16.67A |
200W |
25A |
300W |
0.5A |
1A |
2A |
94% |
|
TES300A24S |
24Vdc |
9.17A |
220W |
12.5A |
300W |
0.5A |
1A |
2A |
95% |
|
TES300A48S |
48Vdc |
4.59A |
220W |
6.25A |
300W |
0.5A |
1A |
2A |
95% |
|
INPUT |
|
|
|
|
|
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
|
Input Voltage |
|
85 |
|
264 |
VAC |
|
Input Current |
|
|
5 |
|
A |
|
Input Frequency |
|
47 |
|
63 |
Hz |
|
Inrush Current |
At 230VAC, cold start@25degC |
|
|
100 |
A |
|
No Load Power |
|
|
|
0.5 |
W |
|
Power Factor |
At 230VAC, full load |
0.9 |
|
|
|
|
|
|
|
|
|
|
|
OUTPUT |
|
|
|
|
|
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
|
Output Voltage |
|
|
12/24/48 |
|
VDC |
|
Hold Up time |
At 115VAC |
|
10 |
|
ms |
|
Line Regulation |
90VAC to 264VAC at full load |
|
±0.5 |
|
% |
|
Load Regulation |
No load to full load |
|
±1 |
|
% |
|
Transient Response |
Deviation with a 50%-75%-50% load change 1A/μs, recovering to <1% within 500μs |
|
|
4 |
% |
|
Ripple and Noise |
20 MHz bandwidth and 10 µF electrolytic capacitor in parallel with 0.1 µF ceramic capacitor. |
|
|
1 |
% |
|
|
|
|
|
|
|
|
STANDBY OUTPUT |
|
|
|
|
|
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
|
Line Regulation |
90VAC to 264VAC at full load |
|
±1 |
|
% |
|
Load Regulation |
No load to full load |
|
±1 |
|
% |
|
Ripple and Noise |
20 MHz bandwidth and 10 µF electrolytic capacitor in parallel with 0.1 µF ceramic capacitor. |
|
1 |
|
% |
|
Remote On/Off |
Connect pin 3 of CN4 to pin 1 to turn main output off. Connect to pin 2 or leave open to turn main output on. |
||||
|
PROTECTIONS |
|||||
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
|
OverVoltage Protection |
Latch |
110 |
|
140 |
% |
|
OverCurrent Protection |
based on 300W, Hiccup Mode |
120 |
|
160 |
% |
|
Short Circuit Protection |
Hiccup Mode, auto recovery |
|
|
|
|
|
Over-Temp Protection |
Hiccup Mode, auto recovery |
|
|
|
|
|
Note: All specifications are typical at 25℃ unless otherwise noted. |
|||||
|
|
|
|
|
|
|
||||||||||||||||||||||||
ENVIRONMENTAL |
|||||||||||||||||||||||||||||
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
||||||||||||||||||||||||
|
Operating Temperature |
|
-40 |
|
70 |
°C |
||||||||||||||||||||||||
|
Storage Temperature |
|
-40 |
|
85 |
°C |
||||||||||||||||||||||||
|
Cooling |
Forced Cool with 10 CFM |
|
|
|
|
||||||||||||||||||||||||
|
Altitude |
|
|
5000 |
|
m |
||||||||||||||||||||||||
|
Humidity |
non-condensing |
5 |
|
95 |
%RH |
||||||||||||||||||||||||
|
Vibration |
IEC68-2-6, 10-500 Hz, 2 g 10 mins /sweep. 60 mins for each of 3 axes |
||||||||||||||||||||||||||||
|
Shock |
IEC68-2-27, 30 g, 11 ms half sine, 3 times in each of 6 axes |
||||||||||||||||||||||||||||
|
SAFETY |
|
|
|
|
|
|
|
Standard |
|
UL/IEC/EN 62368-1 UL/IEC/EN 60950-1 |
||||
|
EMC |
|
|
|
|
|
|
|
Characteristic |
|
Standard |
|
|
|
|
|
Conducted Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|||||
|
Radiated Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class A; Add Ferrite core in input and output side for Class B |
|||||
|
Harmonic Current emissions |
EN61000-3-2:2014, Class A |
|||||
|
Voltage fluctuations & flicker |
EN61000-3-3:2013 |
|||||
|
Electrostatic discharge |
IEC 61000-4-2:2008, Criteria A |
|||||
|
RS(Radiated) |
IEC 61000-4-3:2010, Criteria A |
|||||
|
Electrical fast transient/burst |
IEC 61000-4-4:2012, Criteria A |
|||||
|
Surge |
IEC 61000-4-5:2014, Criteria A |
|||||
|
Conducted Immunity |
IEC 61000-4-6:2013 |
|||||
|
Magnetic Field |
IEC 61000-4-8:2009, Criteria A |
|||||
|
Dip, >95% reduction |
IEC 61000-4-11:2004, Criteria A |
|||||
|
Dip, 30% reduction |
IEC 61000-4-11:2004, Criteria A |
|||||
|
Interruptions, >95% reduction |
IEC 61000-4-11:2004, Criteria C* |
|||||
|
Note*: The EUT was stopped operating during the test, but it’s self-recoverable after test |
||||||
|
|
Derating
Curves

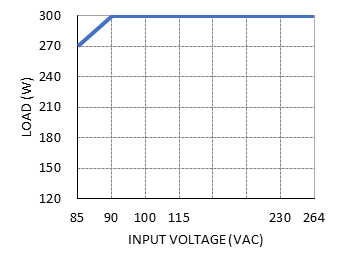

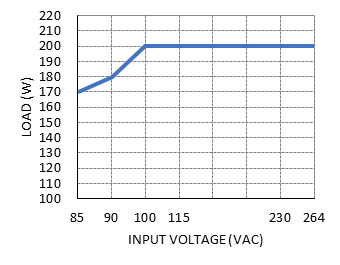

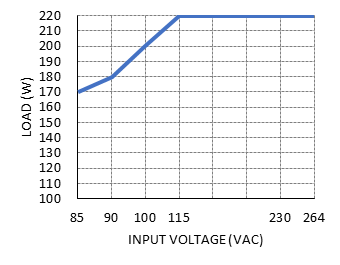

Derating Curve vs. INPUT VOLTAGE
Forced cool with 10 CFM
Convection cool-TES30012 Convection cool-TES30024/48

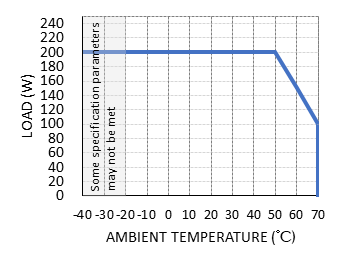

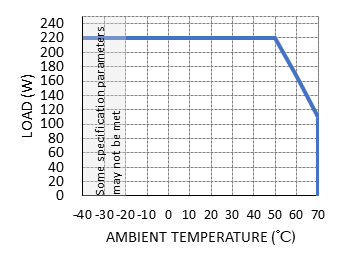

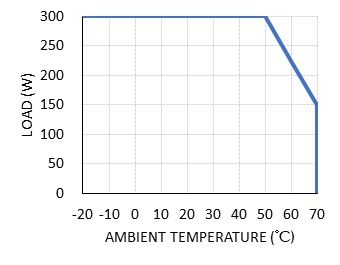

Temperature Derating Curves
Forced cool with 10 CFM
Convection cool-TES30012 Convection cool-TES30024/48

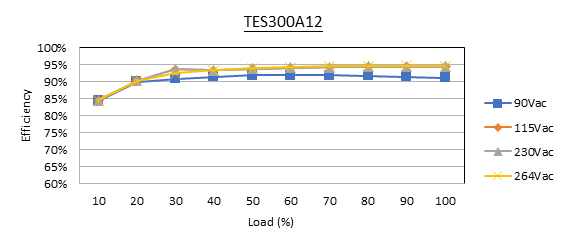

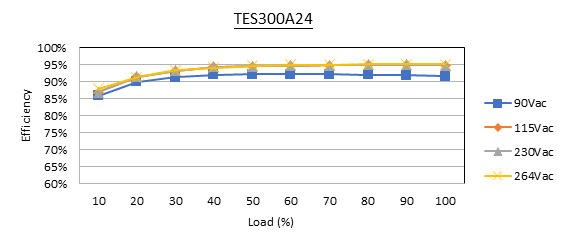

Efficiency (against input voltage)

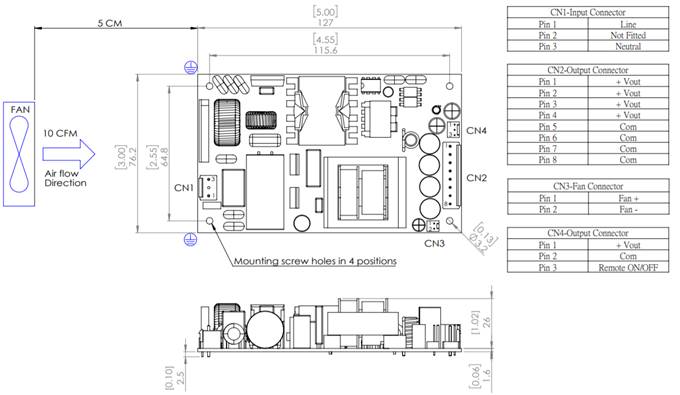

Mechanical

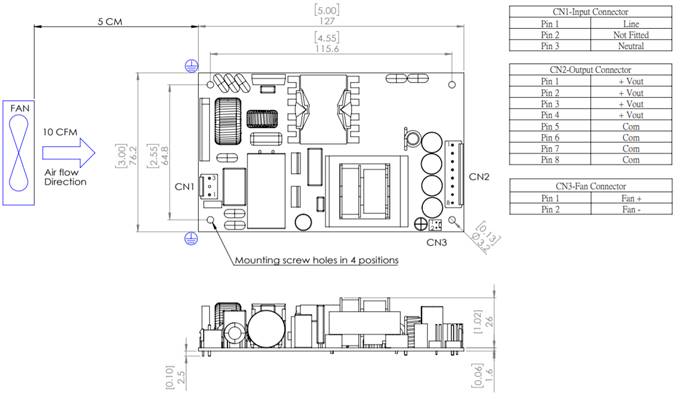

Drawing
TES300AXXS
TES300AXX
Note1: Mounting
holes marked with
must be connected to safety earth.
Note2: CN1-4 all mate with JST housing.
|
Model information |
|
||||||||
|
Model |
Output Voltage |
Main Output (Current, Watt) |
12V Fan Output |
5V standby output |
Efficiency (Convection) |
||||
|
Convection |
Force-Cooled With 10CFM |
Convection |
Force-Cooled |
||||||
|
TES300A12 |
12Vdc |
16.67A |
200W |
25A |
300W |
0.5A |
NA |
94% |
|
|
TES300A24 |
24Vdc |
9.17A |
220W |
12.5A |
300W |
0.5A |
95% |
||
|
TES300A48 |
48Vdc |
4.59A |
220W |
6.25A |
300W |
0.5A |
95% |
||
|
TES300A12S |
12Vdc |
16.67A |
200W |
25A |
300W |
0.5A |
1A |
2A |
94% |
|
TES300A24S |
24Vdc |
9.17A |
220W |
12.5A |
300W |
0.5A |
1A |
2A |
95% |
|
TES300A48S |
48Vdc |
4.59A |
220W |
6.25A |
300W |
0.5A |
1A |
2A |
95% |
