150Watts Chassis Mount AC-DC Module

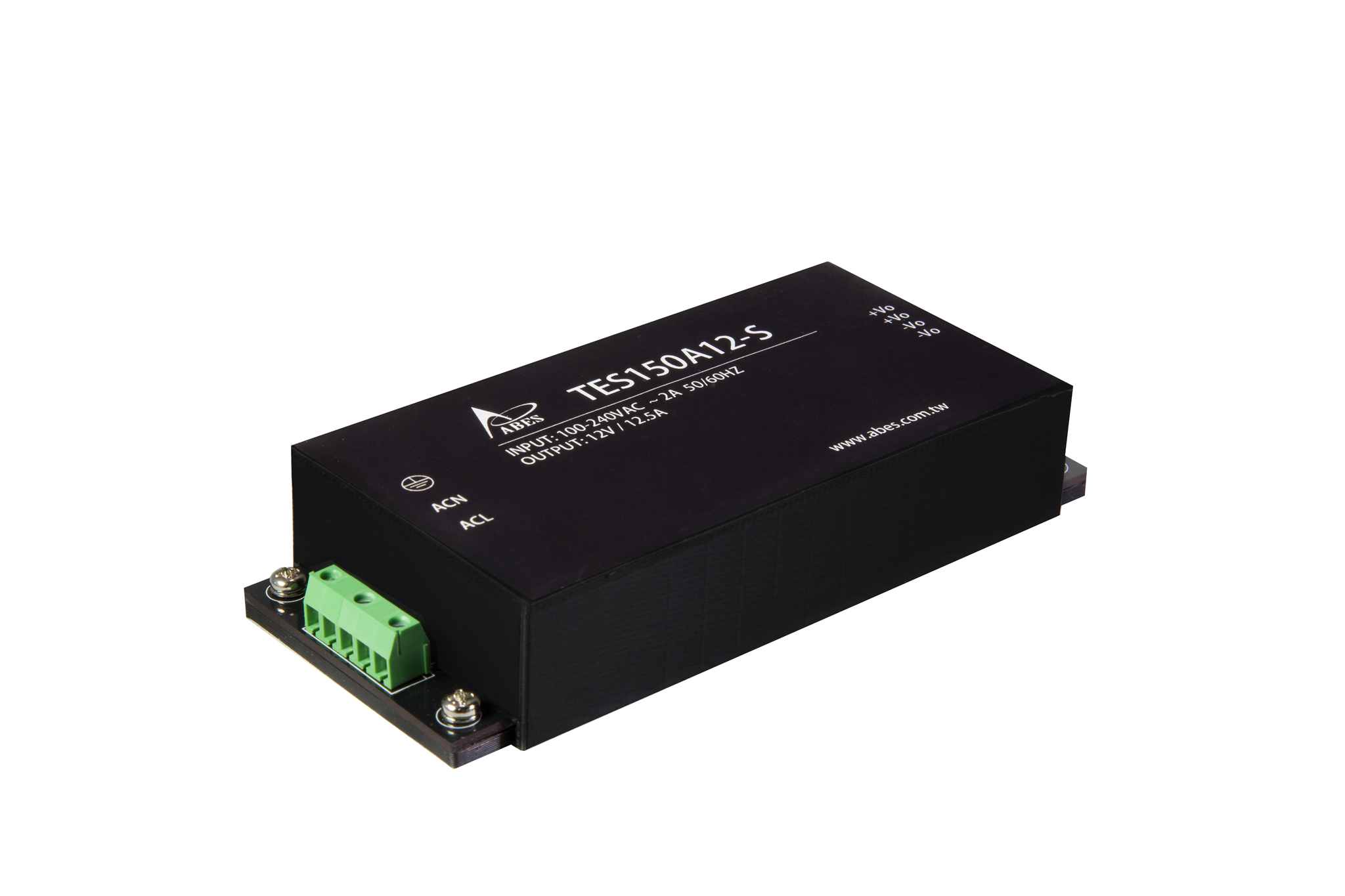

TES150A-S (PRELIMINARY)
Delivers up to 150W of power with a universal AC input range
Features an encapsulated design with a small footprint, available in three versions to suit various needs
- PCB Mounting (TES150A-M): 4.3" x 2.2" x 1.4"
- Screw Terminal (TES150A-S): 5" x 2.2" x 1"
- DIN Rail (TES150A-DS): 5" x 2.2" x 1.3"
Achieves low no-load power consumption of <0.3W to maximize energy savings
Operates reliably across a wide temperature range from -40°C to +70°C
Includes short circuit, overload, and over-voltage protection for enhanced safety
|
Model information |
||||
|
Type |
Model |
Output Voltage |
Output Current |
Output Watt |
|
PCB mounting |
TES150A12-M |
12 Vdc |
12.5A |
150W |
|
TES150A24-M |
24 Vdc |
6.25A |
150W |
|
|
TES150A48-M |
48 Vdc |
3.13A |
150W |
|
|
Screw terminal |
TES150A12-S |
12 Vdc |
12.5A |
150W |
|
TES150A24-S |
24 Vdc |
6.25A |
150W |
|
|
TES150A48-S |
48 Vdc |
3.13A |
150W |
|
|
DIN Rail (with Screw terminal) |
TES150A12-DS |
12 Vdc |
12.5A |
150W |
|
TES150A24-DS |
24 Vdc |
6.25A |
150W |
|
|
TES150A48-DS |
48 Vdc |
3.13A |
150W |
|
|
INPUT |
|
|
|
|
|
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
|
Input Voltage |
|
85 |
|
264 |
VAC |
|
Input Frequency |
|
47 |
|
63 |
Hz |
|
No Load Power |
|
|
|
0.3 |
W |
|
Power Factor |
At 230VAC, full load |
0.9 |
|
|
|
|
|
|
|
|
|
|
|
OUTPUT |
|
|
|
|
|
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
|
Output Voltage |
|
|
12/24/48 |
|
VDC |
|
Hold Up time |
At 115VAC |
|
16 |
|
ms |
|
Startup time |
|
|
|
|
|
|
Line Regulation |
90VAC to 264VAC at full load |
|
±0.5 |
|
% |
|
Load Regulation |
No load to full load |
|
±1 |
|
% |
|
Transient Response |
Deviation with a 50%-75%-50% load change 1A/μs, recovering to <1% within 500μs |
|
|
4 |
% |
|
Ripple and Noise |
20 MHz bandwidth and 10 µF electrolytic capacitor in parallel with 0.1 µF ceramic capacitor. |
|
|
1 |
% |
|
PROTECTIONS |
|||||
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
|
OverVoltage Protection |
Latch |
110 |
|
140 |
% |
|
OverCurrent Protection |
Hiccup Mode |
120 |
|
160 |
% |
|
Short Circuit Protection |
Hiccup Mode, auto recovery |
|
|
|
|
|
Note: All specifications are typical at 25℃ unless otherwise noted. |
|||||
|
|
|
|
|
|
|
||||||||||||||||||||||||
ENVIRONMENTAL |
|||||||||||||||||||||||||||||
|
Characteristic |
Conditions |
Min |
Typ |
Max |
Units |
||||||||||||||||||||||||
|
Operating Temperature |
|
-40 |
|
70 |
°C |
||||||||||||||||||||||||
|
Storage Temperature |
|
-40 |
|
85 |
°C |
||||||||||||||||||||||||
|
Altitude |
|
|
3048 |
|
m |
||||||||||||||||||||||||
|
Humidity |
non-condensing |
5 |
|
95 |
%RH |
||||||||||||||||||||||||
|
Vibration |
Built to meet IEC68-2-6, 10-500 Hz, 2 g 10 mins /sweep. 60 mins for each of 3 axes |
||||||||||||||||||||||||||||
|
SAFETY |
|
|
|
|
|
|
|
Standard |
|
Built to meet UL/IEC/EN 62368-1 |
||||
|
EMC Built to meet the item below |
||||||
|
Characteristic |
|
Standard |
|
|
|
|
|
Conducted Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|||||
|
Radiated Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|||||
|
Harmonic Current emissions |
EN61000-3-2:2014, Class A |
|||||
|
Voltage fluctuations & flicker |
EN61000-3-3:2013 |
|||||
|
Electrostatic discharge |
IEC 61000-4-2:2008, Criteria A |
|||||
|
RS(Radiated) |
IEC 61000-4-3:2010, Criteria A |
|||||
|
Electrical fast transient/burst |
IEC 61000-4-4:2012, Criteria A |
|||||
|
Surge |
IEC 61000-4-5:2014, Criteria A |
|||||
|
Conducted Immunity |
IEC 61000-4-6:2013 |
|||||
|
Magnetic Field |
IEC 61000-4-8:2009, Criteria A |
|||||
|
Dip, >95% reduction |
IEC 61000-4-11:2004, Criteria A |
|||||
|
Dip, 30% reduction |
IEC 61000-4-11:2004, Criteria A |
|||||
|
Interruptions, >95% reduction |
IEC 61000-4-11:2004, Criteria B |
|||||
|
Model information |
||||
|
Type |
Model |
Output Voltage |
Output Current |
Output Watt |
|
PCB mounting |
TES150A12-M |
12 Vdc |
12.5A |
150W |
|
TES150A24-M |
24 Vdc |
6.25A |
150W |
|
|
TES150A48-M |
48 Vdc |
3.13A |
150W |
|
|
Screw terminal |
TES150A12-S |
12 Vdc |
12.5A |
150W |
|
TES150A24-S |
24 Vdc |
6.25A |
150W |
|
|
TES150A48-S |
48 Vdc |
3.13A |
150W |
|
|
DIN Rail (with Screw terminal) |
TES150A12-DS |
12 Vdc |
12.5A |
150W |
|
TES150A24-DS |
24 Vdc |
6.25A |
150W |
|
|
TES150A48-DS |
48 Vdc |
3.13A |
150W |
|
TES150 Series – Flexible 150W Power
Solutions
The TES150 Series from ABES delivers reliable 150W DC output with multiple
mounting options to meet diverse application needs.
Available in PCB mounting, screw terminal, and DIN rail versions, this series
ensures easy integration into industrial systems, automation, and communication
equipment.
Key Features:
- Wide range of output models: 12V / 24V / 48V
- Continuous output power: 150W
- Multiple installation options: PCB, screw terminal, and DIN rail for maximum flexibility
- High efficiency and stable performance, designed for industrial-grade reliability
Model Options:
- PCB Mounting: TES150A12-M / TES150A24-M / TES150A48-M
- Screw Terminal: TES150A12-S / TES150A24-S / TES150A48-S
- DIN Rail (with Screw Terminal): TES150A12-DS / TES150A24-DS / TES150A48-DS
TES150A Series | 150W Ultra-Compact Encapsulated AC-DC Power Supply for Industrial & System Integration
The TES150A Series encapsulated AC-DC power supply delivers up to 150W of reliable output power, available in single output voltages from 12V to 48V, and housed in an ultra-compact design, ideal for space-constrained applications.
Featuring a universal AC input range and built-in protections including short circuit, overload, and overvoltage, the TES150A ensures stable and safe operation across diverse environments.
With no-load input power consumption below 0.3W and efficiency-optimized performance, it supports energy-saving system designs.
Designed for industrial automation, system integration, and embedded applications, it operates reliably across a wide temperature range from -40°C to +70°C.
Available in three flexible mounting options—PCB mount, screw terminal, and DIN rail—the TES150A Series offers versatile installation and meets global safety and EMC standards, including UL/IEC/EN 62368-1 and EN55032 Class B.
