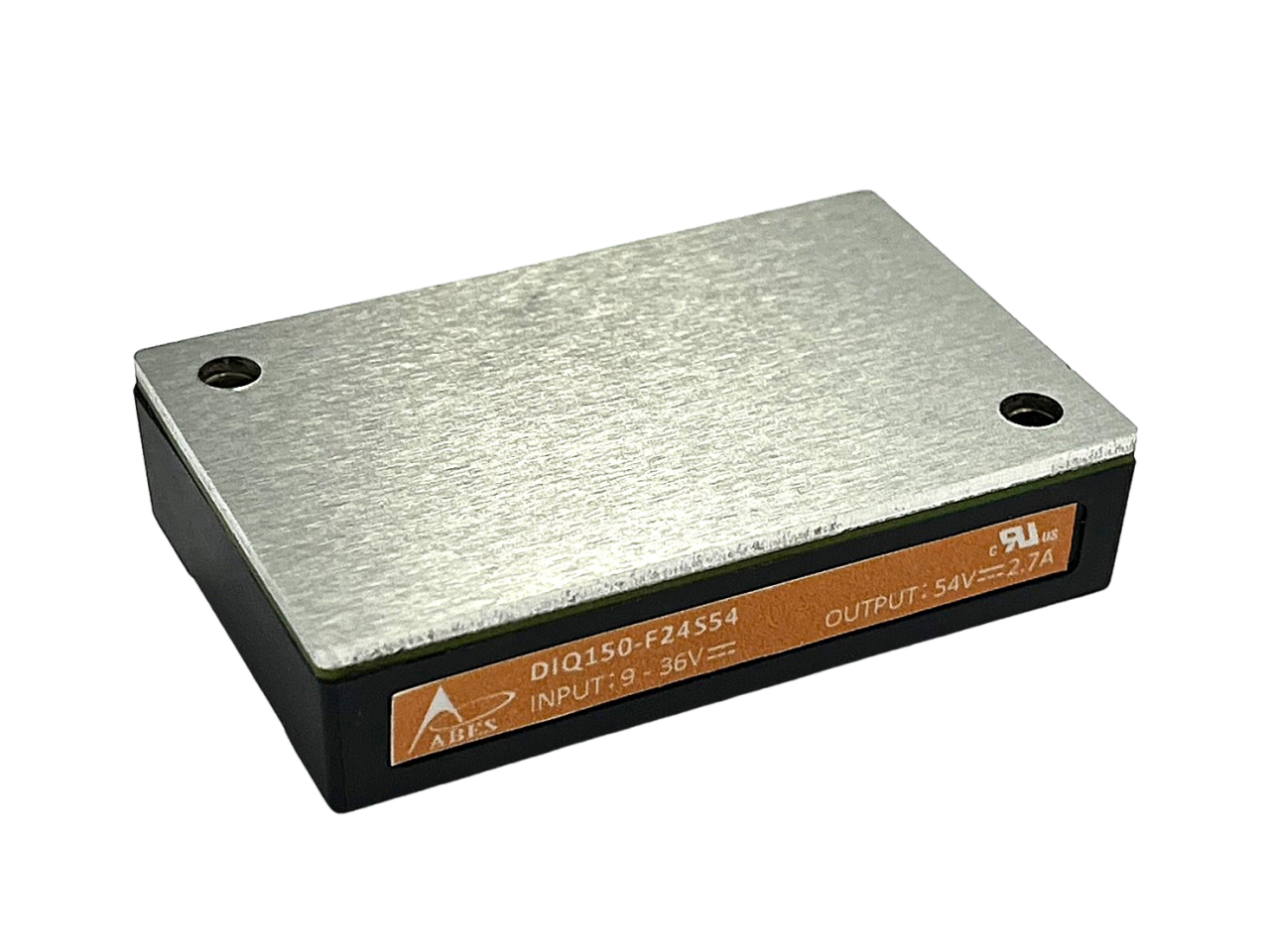

150Watts 8:1 Input Quarter Brick DC-DC Converter
DIQ150 Series
Features an 8:1 wide input range for diverse voltage environments
Achieves up to 92% efficiency with low no-load power consumption
Includes over-temperature (OTP), input under-voltage lockout (UVLO), output over-current (OCP), and output over-voltage (OVP)
Supports remote sense and remote on/off control
Works reliably across a wide range from -40°C to +105°C
MODEL SELECTION TABLE |
|||||||||
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Input Current |
Over Voltage Protection(typ.) |
Output Power |
Efficiency (typ.) |
Maximum Capacitive Load |
|
No Load |
Max Load |
||||||||
DIQ150-W48S05 |
48 VDC (9~75) |
5 VDC |
30 A |
25 mA |
3.48 A |
6.2 VDC |
150 W |
90% |
12000 µF |
DIQ150-W48S12 |
12 VDC |
12.5 A |
25 mA |
3.48 A |
15 VDC |
150 W |
92% |
12000 µF |
|
DIQ150-W48S15 |
15 VDC |
10 A |
25 mA |
3.48 A |
18 VDC |
150 W |
91% |
12000 µF |
|
DIQ150-W48S24 |
24 VDC |
6.25 A |
20 mA |
3.48 A |
28 VDC |
150 W |
90% |
3000 µF |
|
DIQ150-W48S48 |
48 VDC |
3.12A |
20 mA |
3.48 A |
56 VDC |
150 W |
90% |
1000 µF |
|
DIQ150-W48S54 |
54 VDC |
2.7A |
20 mA |
3.43 A |
62 VDC |
150 W |
90% |
700 µF |
SPECIFICATIONS: DIQ150 SERIES |
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted. We reserve the right to change specifications based on technological advances. At least 330uF E-Cap is suggested to be added to the input terminal to stabilize the input voltage source. |
INPUT |
|||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
Input Voltage Range |
48VDC Nominal input models |
9 |
48 |
75 |
VDC |
Input Surge Voltage (100ms max.) |
48VDC Nominal input models |
--- |
--- |
100 |
VDC |
Start-up Threshold Voltage |
24VDC Nominal input models |
--- |
--- |
8.7 |
VDC |
Under Voltage Lockout(UVLO) |
24VDC Nominal input models |
--- |
7.7 |
--- |
VDC |
Input Current |
|
See model selection table |
|||
Input filter |
|
Pi network filter |
OUTPUT |
|||||||||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
||||||
Output Voltage |
|
See Table |
|||||||||
Line Regulation |
Low line to high line at full load |
-1 |
--- |
+1 |
%Vo |
||||||
Load Regulation |
25-100% of lo |
-1 |
--- |
+1 |
%Vo |
||||||
Output Voltage Setting Accuracy |
Max lo |
-1 |
--- |
+1 |
%Vo |
||||||
Output Voltage Trim |
|
-10 |
--- |
+10 |
%Vo |
||||||
Output Power |
|
See model selection table |
|||||||||
Output Current |
|
See model selection table |
|||||||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
||||||
Minimum Load |
|
No minimum load required |
|||||||||
Ripple & Noise |
Vin=48V, max lo. Measured by 20MHz bandwidth with 1uF ceramic cap. and 10uF E-cap. Connected to the output pins. |
5VDC output |
--- |
--- |
75 |
mV |
|||||
12VDC output |
--- |
--- |
100 |
||||||||
15VDC output |
--- |
--- |
100 |
||||||||
24VDC output |
--- |
--- |
240 |
||||||||
48VDC output |
--- |
--- |
480 |
||||||||
54VDC output |
--- |
--- |
540 |
||||||||
Transient Recovery Time |
50% - 75% of lo, di/dt=0.1A/us |
--- |
|
500 |
µs |
||||||
Transient Recovery Deviation |
|
|
|
%Vo |
|||||||
PROTECTION |
|||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
Output Over Voltage Protection |
Zener diode clamp |
See model selection table |
|||
Over Current Protection |
% of Io rated; Hiccup mode |
110 |
--- |
170 |
%Io |
Thermal Protection |
|
--- |
110 |
--- |
°C |
Short Circuit Protection |
Short +Vo to VO |
Auto recovery |
GENERAL |
|||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
Efficiency |
|
See model selection table |
|||
Switching Frequency |
|
--- |
280 |
--- |
KHz |
Isolation Voltage |
Input to Output, 60 Sec |
--- |
--- |
4000 |
VDC |
Isolation Resistance |
500VDC |
100 |
--- |
--- |
M Ohm |
Isolation Capacitance |
|
--- |
---- |
1 |
nF |
Maximum Capacitive Load |
|
See model selection table |
REMOTE ON/OFF |
|||||||
Specification |
|||||||
Positive Logic |
Referred to - Vin pin |
Converter On |
open circuit or 2.5 ~ 12VDC |
||||
Converter Off |
Short circuit or 0 ~ 0.8VDC |
||||||
Negative Logic |
Converter On |
Short circuit or 0 ~ 0.8VDC |
|||||
Converter Off |
open circuit or 2.5 ~ 12VDC |
||||||
Control Input Current |
On |
Vctrl = 5.0V |
--- |
0.5 |
--- |
mA |
|
Off |
Vctrl = 0V |
--- |
-0.5 |
--- |
|||
Stand-by Input idle Current |
Nominal Vin |
--- |
2.5 |
--- |
mA |
ENVIRONMENTAL |
||||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Operating Temperature (Without Heatsink) |
Natural air convection (20LFM) Nominal Vin and full load |
All models |
-40 |
--- |
+110 |
°C |
Over temperature shutdown point (Baseplate) |
|
--- |
+110 |
--- |
°C |
|
Storage Temperature |
|
-55 |
--- |
+125 |
°C |
|
Humidity (non-condensing) |
|
--- |
--- |
95 |
% RH |
|
Cooling |
Natural convection is about 20LFM but is not equal to still air (0LFM) |
Natural convection |
||||
Lead Temperature |
1.5mm from case for 10 seconds |
--- |
--- |
260 |
°C |
|
PHYSICAL |
|
Weight |
120 g (4.23 oz) |
Dimension (L x W x H) |
2.28 x 1.45 x 0.5 in (57.9 x 36.8 x 12.7 mm) |
Case Material |
Plastic, DAP, UL 94V-0 |
Base plate Material |
Aluminum Base Plate |
Pin Material |
Copper alloy |
Safety Approvals |
Meet UL/cUL 62368-1 |
||
EMI (external circuit required ) |
EN55032, FCC part 15 |
Class A |
|
EMS (external circuit required ) |
ESD |
EN61000-4-2 Air: ±8KV, Contact: ±6KV |
Criteria A |
Radiated Immunity |
EN61000-4-3 10V/m |
Criteria A |
|
Fast Transient |
EN61000-4-4 ±2KV |
Criteria A |
|
Surge |
EN61000-4-5 ±1KV |
Criteria A |
|
Conducted Immunity |
EN61000-4-6 10V/m |
Criteria A |
NOTES |
1. Transient recovery time is measured to within 1% error band for a step change in output load from 50% to 75%. 2. This power module is not internally fused. We recommend protecting the converter by a slow blow fuse in the input supply line. 3. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested capacitor 330µF/100v. 4. This product is listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
MODEL SELECTION TABLE |
|||||||||
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Input Current |
Over Voltage Protection(typ.) |
Output Power |
Efficiency (typ.) |
Maximum Capacitive Load |
|
No Load |
Max Load |
||||||||
DIQ150-W48S05 |
48 VDC (9~75) |
5 VDC |
30 A |
25 mA |
3.48 A |
6.2 VDC |
150 W |
90% |
12000 µF |
DIQ150-W48S12 |
12 VDC |
12.5 A |
25 mA |
3.48 A |
15 VDC |
150 W |
92% |
12000 µF |
|
DIQ150-W48S15 |
15 VDC |
10 A |
25 mA |
3.48 A |
18 VDC |
150 W |
91% |
12000 µF |
|
DIQ150-W48S24 |
24 VDC |
6.25 A |
20 mA |
3.48 A |
28 VDC |
150 W |
90% |
3000 µF |
|
DIQ150-W48S48 |
48 VDC |
3.12A |
20 mA |
3.48 A |
56 VDC |
150 W |
90% |
1000 µF |
|
DIQ150-W48S54 |
54 VDC |
2.7A |
20 mA |
3.43 A |
62 VDC |
150 W |
90% |
700 µF |
DIQ150 Series – Model Selection
The DIQ150 series offers a wide 9–75 VDC input range with multiple single output options, delivering up to 150W of reliable power. With high efficiency up to 92% and robust protection features, this series is designed for demanding industrial applications.
Available Models:
DIQ150 Series | 150W DC-DC Converter with 8:1 Input Range and Advanced Protection for Industrial Applications
The ABES DIQ150 Series DC-DC converter delivers up to 150W of reliable power in a compact form factor, engineered for demanding industrial environments and space-constrained embedded systems.
Featuring an 8:1 ultra-wide input voltage range, efficiency up to 92%, and ultra-low no-load power consumption, the DIQ150 supports energy-efficient designs and extended battery life.
Built-in protection features include:
Over-temperature protection (OTP)
Input under-voltage lockout (UVLO)
Output over-current protection (OCP)
Output over-voltage protection (OVP)
Additional capabilities such as remote sense, remote on/off control, and a wide operating temperature range from −40°C to +105°C ensure flexible integration and stable performance in harsh conditions.
