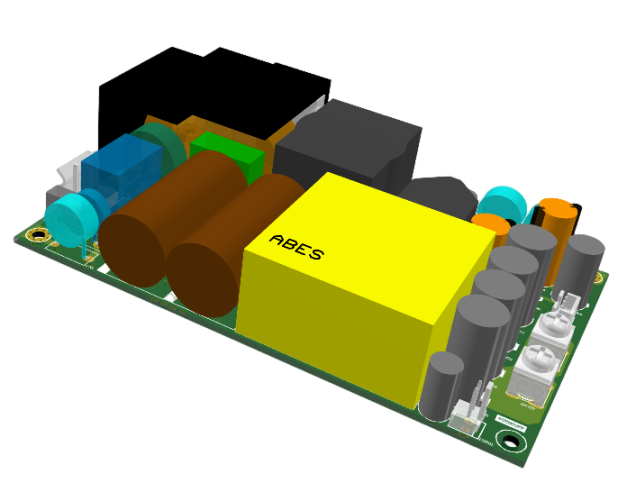

700Watts AC-DC 3x5 Inch ITE Open Frame Power Supply
AID700 Series
Delivers up to 700W with force cooling and 400W with convection cooling for versatile applications
Features a 3”x 5” compact size with an outstanding efficiency of up to 96% and ultra-low no-load input power of less than 0.5W
Includes optional 12V fan output and an optional 5V standby output for enhanced system integration
Designed to meet global ITE and Medical safety standards, including Class I & Class II, EN55032 (Class B), IEC60601-1, and UL/IEC/EN 62368-1
|
MODEL SELECTION TABLE |
|||||||||
|
Model Number |
Input Voltage |
Output Voltage |
Main Output (Current, Watt) |
Standby and fan power supply total power 8W |
Efficiency |
||||
|
Convection |
Force-Cooled |
5V |
12V |
||||||
|
AID700-S12 |
85 ~264 VAC |
12 VDC |
33.4 A |
400W |
58.3 A |
700W |
|
|
94% |
|
AID700-S24 |
24 VDC |
16.6 A |
400W |
29.2A |
700W |
|
|
95% |
|
|
AID700-S48 |
48 VDC |
8.3 A |
400W |
14.6 A |
700W |
|
|
96% |
|
|
AID700-S54 |
54 VDC |
7.4A |
400W |
12.9 A |
700W |
|
|
96% |
|
|
AID700-S12A |
12 VDC |
33.4 A |
400W |
58.3 A |
700W |
1 A |
0.5 A |
94% |
|
|
AID700-S24A |
24 VDC |
16.6 A |
400W |
29.2A |
700W |
1 A |
0.5 A |
95% |
|
|
AID700-S48A |
48 VDC |
8.3 A |
400W |
14.6 A |
700W |
1 A |
0.5 A |
96% |
|
|
AID700-S54A |
54 VDC |
7.4A |
400W |
12.9 A |
700W |
1 A |
0.5 A |
96% |
|
|
SPECIFICATIONS: AID700 SERIES |
|||||
|
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted. We reserve the right to change specifications based on technological advances. |
|||||
|
INPUT |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Input Voltage |
AC input DC input |
85 120 |
|
264 370 |
VAC VDC |
|
Input Current |
115VAC and Full Load |
|
|
6 |
A |
|
Input Frequency |
AC input |
47 |
|
63 |
Hz |
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Inrush Current |
115VAC, cold start@25°C |
|
|
50 |
A |
|
230VAC, cold start@25°C |
|
|
70 |
A |
|
|
No Load Input Power |
without Fan |
|
|
0.3 |
W |
|
Power Factor |
115VAC, full load |
|
0.99 |
|
% |
|
230VAC, full load |
|
0.96 |
|
% |
|
|
Leakage Current |
265Vac, 60Hz |
|
|
200 |
uA |
|
OUTPUT |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Output Voltage |
12/24/48/54 |
|
|
|
VDC |
|
Hold Up time |
At 115VAC,400W Load |
|
12 |
|
ms |
|
Line Regulation |
90VAC to 264VAC at full load |
±0.5 |
|
|
% |
|
Load Regulation |
No load to full load |
±1 |
|
|
% |
|
Transient Response |
Deviation with a 50%-75%-50% load change 1A/μs, recovering to <1% within 500μs |
3 |
|
|
% |
|
Ripple and Noise |
20 MHz bandwidth and 10 µF electrolytic capacitor in parallel with 0.1 µF ceramic capacitor. |
1 |
|
|
% |
|
Fan Power |
Offer output power of 12V/0.5A without put voltage accuracy ±15% |
||||
|
STANDBY OUTPUT (Optional) |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Line Regulation |
90VAC to 264VAC at full load |
±10 |
|
|
% |
|
Load Regulation |
No load to full load |
±10 |
|
|
% |
|
Ripple and Noise |
20 MHz bandwidth and 10 µF electrolytic capacitor in parallel with 0.1 µF ceramic capacitor. |
1 |
|
|
% (pk-pk) |
|
Remote On/Off |
TBD |
|
|
|
|
|
PROTECTION |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Over Voltage Protection |
Latch |
110 |
|
140 |
% |
|
Over Current Protection |
based on 700W, Hiccup Mode |
120 |
|
160 |
% |
|
Short Circuit Protection |
Hiccup Mode, auto recovery |
||||
|
Over Temp Protection |
Hiccup Mode, auto recovery |
||||
|
ENVIRONMENTAL |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Operating Temperature |
With derating |
-40 |
|
85 |
°C |
|
Storage Temperature |
All Model |
-40 |
|
85 |
°C |
|
Altitude |
|
|
|
5000 |
m |
|
Humidity |
non-condensing |
5 |
|
95 |
%RH |
|
Specification |
Conditions |
|
|
Isolation Voltage |
Primary to Secondary |
4000 VAC |
|
Primary to Earth |
2000 VAC |
|
|
Secondary to Earth |
1500 VAC |
|
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG |
100M Ohms / 500VDC |
|
Isolation Level |
Primary to Secondary |
2 x MOPP |
|
Primary to Earth |
1 x MOPP |
|
|
Secondary to Earth |
1 x MOPP |
|
|
SAFETY |
|
|
Standard |
Meets UL/IEC/EN 62368-1 ,EN/EN60601-1 ,CLASS I & CLASS II |
|
EMC |
|
|
Characteristic |
Standard |
|
Conducted Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|
Radiated Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|
Harmonic Current emissions |
EN61000-3-2:2014, Class A |
|
Voltage fluctuations & flicker |
EN61000-3-3:2013 |
|
Electrostatic discharge |
IEC 61000-4-2:2008, Criteria A ; 15KV air ; 8KV contact |
|
RS(Radiated) |
IEC 61000-4-3:2010, Criteria A |
|
Electrical fast transient/burst |
IEC 61000-4-4:2012, Criteria A |
|
Surge |
IEC 61000-4-5:2014, Criteria A ; 4KV/Line-FG ; 2KV/Line-Line |
|
Conducted Immunity |
IEC 61000-4-6:2013 |
|
Magnetic Field |
IEC 61000-4-8:2009, Criteria A |
|
Dip and interruptions |
EN61000-4-11 |
|
MODEL SELECTION TABLE |
|||||||||
|
Model Number |
Input Voltage |
Output Voltage |
Main Output (Current, Watt) |
Standby and fan power supply total power 8W |
Efficiency |
||||
|
Convection |
Force-Cooled |
5V |
12V |
||||||
|
AID700-S12 |
85 ~264 VAC |
12 VDC |
33.4 A |
400W |
58.3 A |
700W |
|
|
94% |
|
AID700-S24 |
24 VDC |
16.6 A |
400W |
29.2A |
700W |
|
|
95% |
|
|
AID700-S48 |
48 VDC |
8.3 A |
400W |
14.6 A |
700W |
|
|
96% |
|
|
AID700-S54 |
54 VDC |
7.4A |
400W |
12.9 A |
700W |
|
|
96% |
|
|
AID700-S12A |
12 VDC |
33.4 A |
400W |
58.3 A |
700W |
1 A |
0.5 A |
94% |
|
|
AID700-S24A |
24 VDC |
16.6 A |
400W |
29.2A |
700W |
1 A |
0.5 A |
95% |
|
|
AID700-S48A |
48 VDC |
8.3 A |
400W |
14.6 A |
700W |
1 A |
0.5 A |
96% |
|
|
AID700-S54A |
54 VDC |
7.4A |
400W |
12.9 A |
700W |
1 A |
0.5 A |
96% |
|
The AID700 Series offers a wide range of single output options, all operating from a universal 85~264VAC input. With output voltages of 12V, 24V, 48V, and 54V, each model delivers 400W under convection cooling and up to 700W with force cooling, ensuring maximum flexibility for diverse applications.
Efficiency reaches up to 96%, while standby and auxiliary power features (5V / 12V, total 8W) provide additional system support for advanced designs. Whether for industrial automation, IPC, test equipment, or telecommunications, the AID700 Series delivers high current capability, superior efficiency, and reliable performance.
Model Highlights:
AID700-S12 – 12V output up to 58.3A, ideal for high-current, low-voltage systems.
AID700-S24 – 24V output up to 29.2A, balancing efficiency and versatility.
AID700-S48 – 48V output up to 14.6A, designed for industrial and networking needs.
AID700-S54 – 54V output up to 12.9A, supporting advanced power systems with maximum reliability.
ABES AID700 Series | 700W High-Efficiency Open Frame Power Supply for Industrial & Medical Applications
The ABES AID700 Series open-frame AC-DC power supply delivers up to 700W with forced air cooling and 400W under convection cooling, all within a compact 3×5 inch low-profile design (1.2 height)—perfect for space-constrained systems.
With industry-leading efficiency up to 96% and no-load input power below 0.5W, the AID700 Series ensures maximum energy savings and optimized thermal performance.
Key features include:
Optional 12V fan output
Optional 5V standby output
Remote on/off control
High power density
Certified to IEC60601-1 (Medical), UL/IEC/EN 62368-1 (ITE), and EN55032 Class B EMI, this power supply meets Class I & II safety standards, making it suitable for medical devices, industrial automation, test equipment, IPC, and telecommunications.
The AID700 Series is the ultimate solution for high-performance systems requiring reliable, efficient, and compact power delivery.
