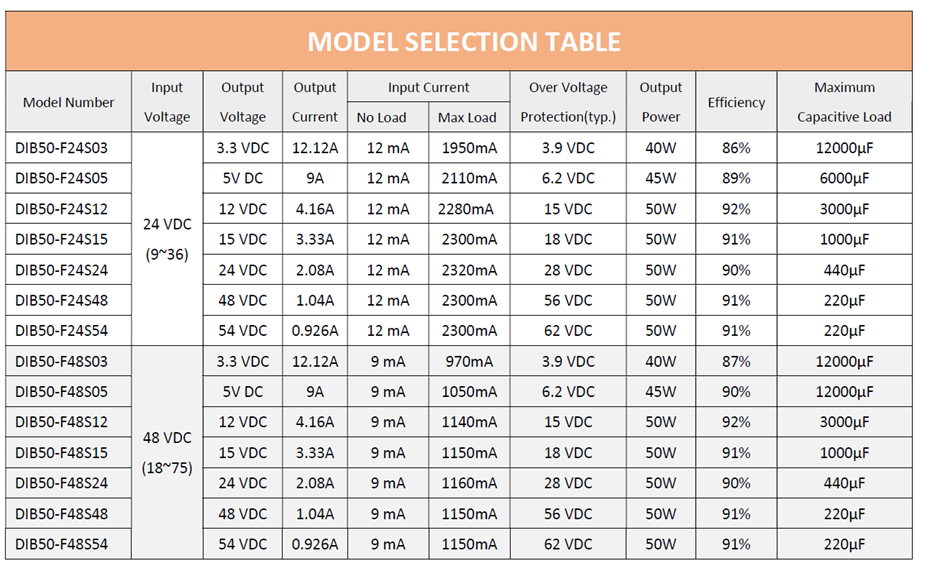

MODEL SELECTION TABLE

Model Number

Input Voltage

Output Voltage

Output Current

Input Current

Over Voltage Protection

(typ.)

Output Power

Efficiency

(typ.)

Maximum Capacitive Load

No Load

Max Load

DIB50-F24S03

24 VDC

(9~36)

3.3 VDC

12.12A

12 mA

1950mA

3.9 VDC

40W

86%

12000μF

DIB50-F24S05

5V DC

9A

2110mA

6.2 VDC

45W

89%

6000μF

DIB50-F24S12

12 VDC

4.16A

2280mA

15 VDC

50W

92%

3000μF

DIB50-F24S15

15 VDC

3.33A

2300mA

18 VDC

50W

91%

1000μF

DIB50-F24S24

24 VDC

2.08A

2320mA

28 VDC

50W

90%

440μF

DIB50-F24S48

48 VDC

1.04A

2300mA

56 VDC

50W

91%

220μF

DIB50-F24S54

54 VDC

0.926A

2300mA

62 VDC

50W

91%

220μF

DIB50-F48S03

48 VDC

(18~75)

3.3 VDC

12.12A

9 mA

970mA

3.9 VDC

40W

87%

12000μF

DIB50-F48S05

5 VDC

9A

1050mA

6.2 VDC

45W

90%

6000μF

DIB50-F48S12

12 VDC

4.16A

1140mA

15 VDC

50W

92%

3000μF

DIB50-F48S15

15 VDC

3.33A

1150mA

18 VDC

50W

91%

1000μF

DIB50-F48S24

24 VDC

2.08A

1160mA

28 VDC

50W

90%

440μF

DIB50-F48S48

48 VDC

1.04A

1150mA

56 VDC

50W

91%

220μF

DIB50-F48S54

54 VDC

0.926A

1150mA

62 VDC

50W

91%

220μF

INPUT

Item

Conditions

Min

Typ

Max

Unit

Input Voltage Range

24VDC Nominal input models

9

24

36

VDC

48VDC Nominal input models

18

48

75

Input Surge Voltage

(100ms max.)

24VDC Nominal input models

50

48VDC Nominal input models

100

Start-up Threshold Voltage

24VDC Nominal input models

8.2

8.5

8.7

48VDC Nominal input models

16.4

16.7

17

Under Voltage Lockout(UVLO)

24VDC Nominal input models

7

7.5

8

48VDC Nominal input models

15

15.5

16

Input Current

See model selection table

Input filter

Pi network filter

OUTPUT

Item

Conditions

Min

Typ

Max

Unit

Output Voltage

See Table

Line Regulation

Low line to high line at full load

-1

+1

%Vo

Load Regulation

25-100% of lo

-1

+1

%Vo

Output Voltage Setting Accuracy

max lo

-1

+1

%Vo

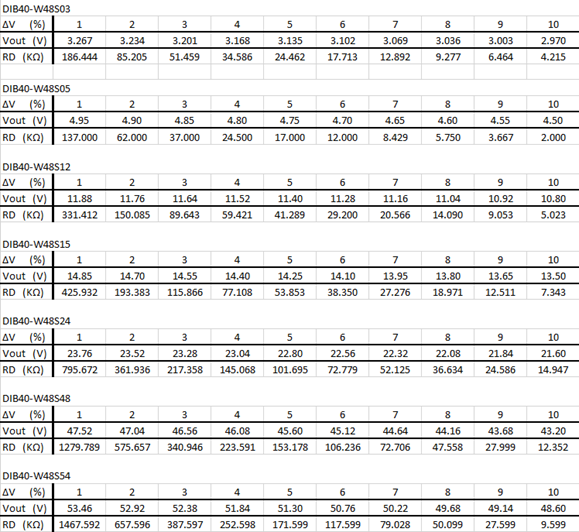

Output Voltage Trim

-10

+10

%Vo

Ripple & Noise

At full load, nominal input

Measured 20MHz

bandwidth with 1uF

ceramic cap. and 10uF

E-cap. Connected to the

output pins.

3.3VDC output

30

mV

5VDC output

50

12VDC output

120

15VDC output

150

24VDC output

240

48VDC output

480

54VDC output

540

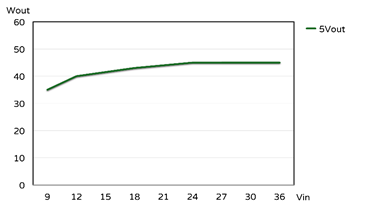

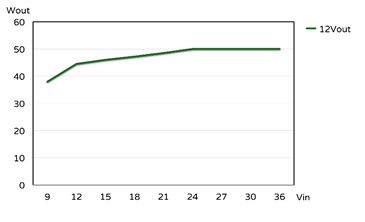

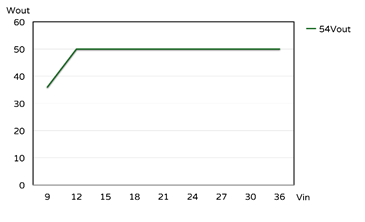

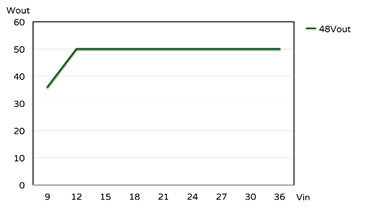

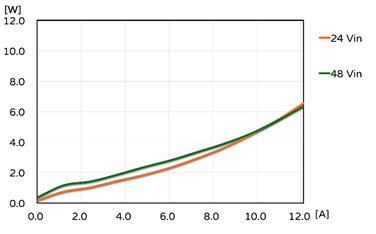

Output Power

See model selection table

Output Current

See model selection table

Minimum Load

No minimum load required

Transient Recovery Time

50% - 75% of lo, di/dt=0.1A/us

300

500

us

Transient Recovery

Deviation

±3

±5

%Vo

PROTECTION

Item

Conditions

Min

Typ

Max

Unit

Output Over Voltage Protection

Zener diode clamp

See model selection table

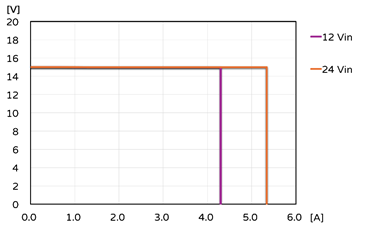

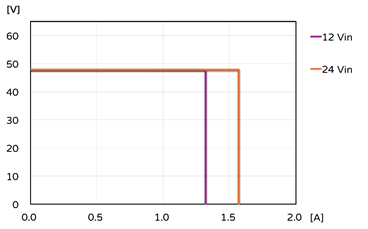

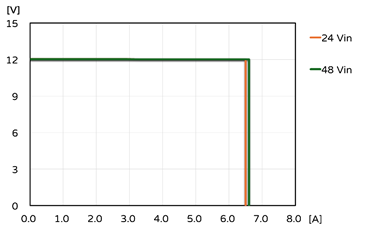

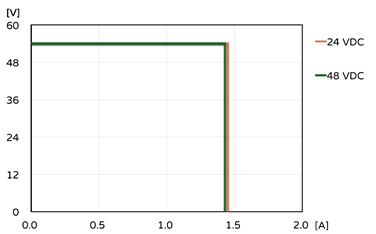

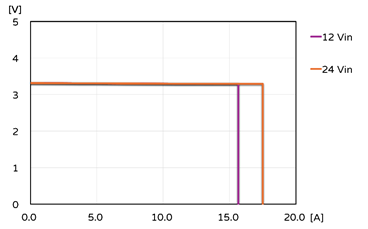

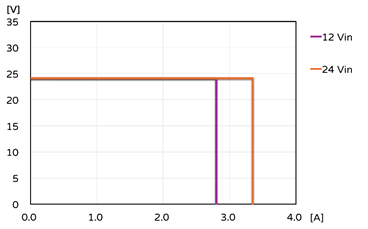

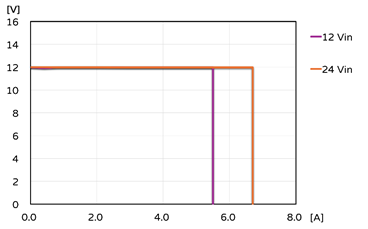

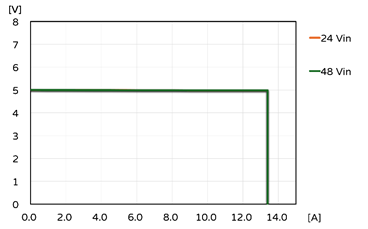

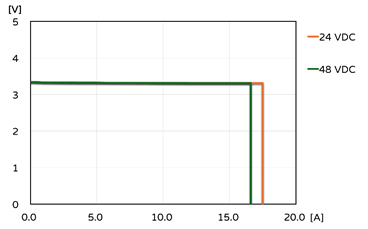

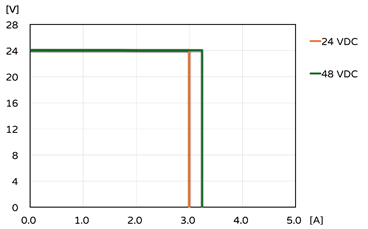

Over Current Protection

% of Io rated; Hiccup mode

130

180

%Io

Thermal Protection

110

°C

Short Circuit Protection

Short +Vo to VO

Auto recovery

GENERAL

Item

Conditions

Min

Typ

Max

Unit

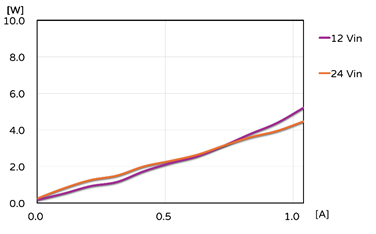

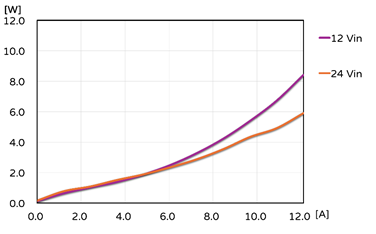

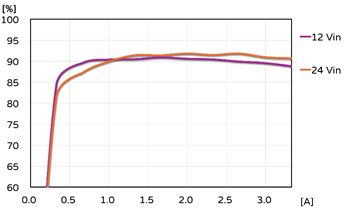

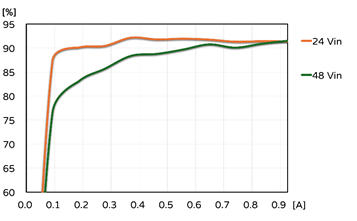

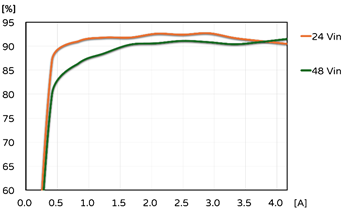

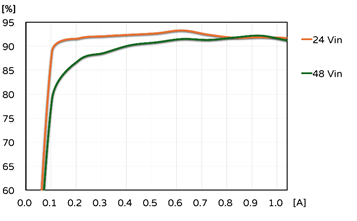

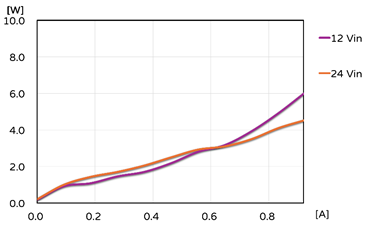

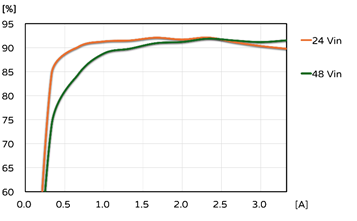

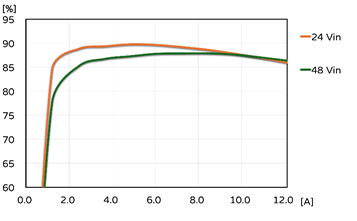

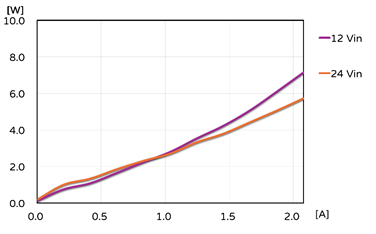

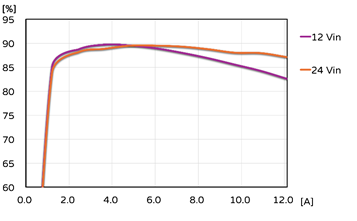

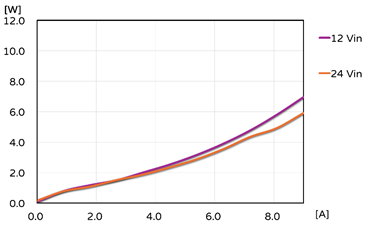

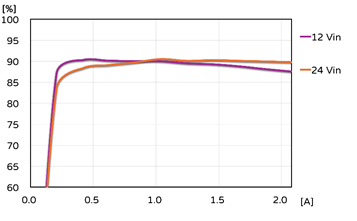

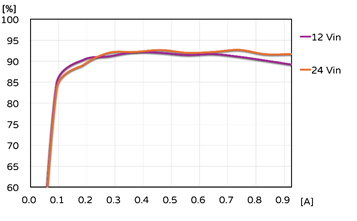

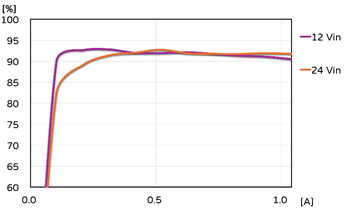

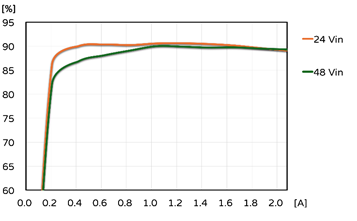

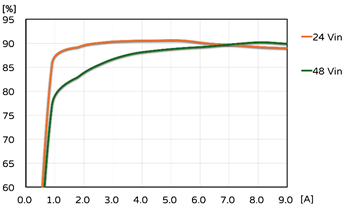

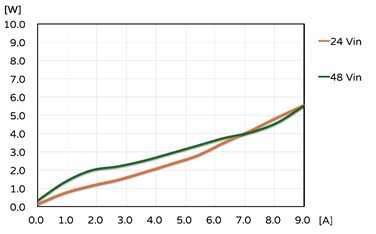

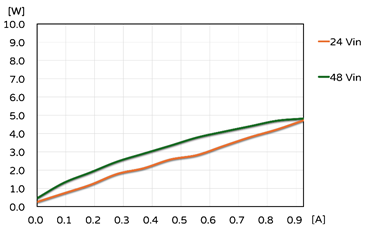

Efficiency

See model selection table

Switching Frequency

220

KHz

Isolation Voltage

Input to Output, 60 Sec

3000

VDC

Isolation Resistance

500VDC

100

M Ohm

Isolation Capacitance

1

nF

Maximum Capacitive Load

See model selection table

REMOTE ON/OFF

Item

Conditions

Positive Logic

Referred to - Vin pin

Converter On

open circuit or 2.5 ~ 12VDC

Converter Off

Short circuit or 0 ~ 0.8VDC

Negative Logic

Converter On

Short circuit or 0 ~ 0.8VDC

Converter Off

open circuit or 2.5 ~ 12VDC

Control Input Current

On

Vctrl = 5.0V

0.5

mA

Off

Vctrl = 0V

-0.5

Stand-by Input idle Current

Nominal Vin

6.5

ENVIRONMENT

Item

Conditions

Min

Typ

Max

Unit

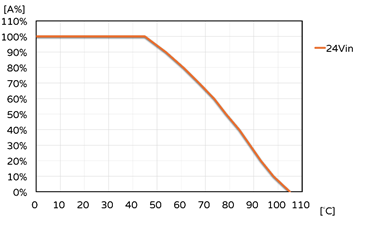

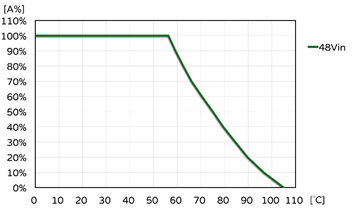

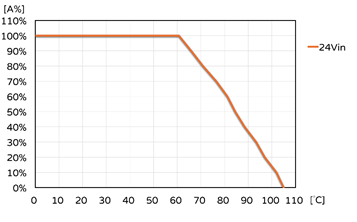

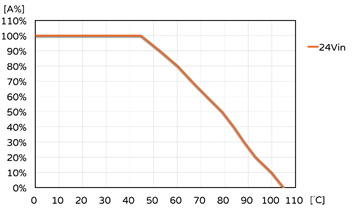

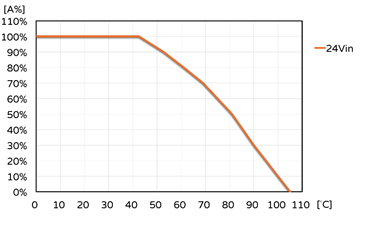

Operating Temperature

With derating

-40

105

°C

Case Temperature

105

°C

Storage Temperature

-55

125

°C

Humidity

(non-condensing)

95

% RH

RFI

Six-sided shielding, metal case

Cooling

Natural convection is about 20LFM but is not equal to still air (0LFM)

Natural convection

Lead Temperature

1.5mm from case for 10 seconds

260

°C

PHYSICAL SPECIFICATIONS

Weight

36g (1.27oz)

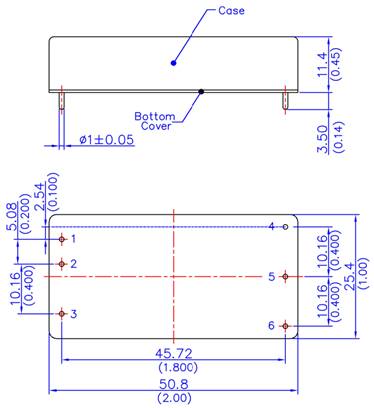

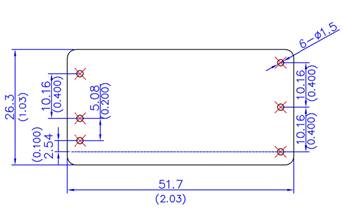

Dimension (L x W x H)

2.00 x 1.00 x 0.45 inches (50.8 x 25.4 x 11.43 mm)

Case Material

Copper

Base Material

FR4 PCB (Flammability to UL 94V-0 rated)

Pin Material

Copper alloy

SAFETY & EMC

Safety Approvals

UL/cUL 62368-1 (CSA certificate) ; IEC/EN 62368-1 (CB-report)

EMI

(external circuit required )

EN55032, FCC part 15

Class A

EMS

(external circuit required

ESD

EN61000-4-2 Air:±8KV ; Contact:±6KV

Criteria A

Radiated Immunity

EN61000-4-3 10V/m

Fast Transient

EN61000-4-4 ±2KV

Surge

EN61000-4-5 ±1KV

Conducted Immunity

EN61000-4-6 10V/m

NOTES

1. Transient recovery time is measured to within 1% error band for a step change in output load from 50% to 75%.

2. This power module is not internally fused. We recommend protecting the converter by a slow blow fuse in the input supply line.

3. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested capacitor 330μF/100v.

4. The purpose for more stable at the output terminal, the output voltage of 3.3VDC requires to add an 330uf E-Cap.The output voltage of 5VDC, 12VDC and 15VDC require a 100uF E-Cap to stabilize the output terminal. The output voltage of 24VDC, 48VDC and 54VDC are not necessary required for E-Cap.

5. Do not exceed maximum power specifications when adjusting the output voltage.

6. This product is listed to applicable standards and requirements by UL.

Due to advances in technology, specifications subject to change without notice.
