ABES technology co., ltd.
|
INPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage Range
|
9-75
|
|
|
Surge Voltage (100ms
max.)
|
9-75
Vin models: 100 Vdc
|
|
|
Under Voltage Lockout
|
Start-up
voltage：8.8 Vdc
Shutdown
voltage：8 Vdc
|
|
|
Filter
|
Capacitor
Network
|
|
|
Protection
|
Fuse
recommended (see page 7)
|
|
|
OUTPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage
Accuracy
|
±2% max.
|
|
|
Rated
Power
|
1W
|
|
|
Ripple
& Noise1
|
3.3~9V：100mV Vp-p max.
12~24V：1% Output Vp-p max.
|
|
|
Line
Regulation2
|
±0.5%
|
|
|
Load
Regulation3
|
±1% for 3.3Vdc output
|
±0.5% for others
output
|
|
|
Cross
Regulation
|
±5%
|
Dual：asymmetrical load 25%/100% FL
|
|
|
Switching
Frequency
|
330Khz
typ.
|
|
|
PROTECTION
|
|
|
Item
|
Conditions
|
|
|
Short Circuit
|
Protection
type: continuous, recovery
|
|
|
Overload
|
110%~350%
|
|
|
Protection
type: recovers automatically after fault condition is removed
|
|
|
ENVIRONMENTAL
|
|
|
Item
|
Conditions
|
|
|
Cooling
|
Free-air
convection
|
|
|
Working Temperature
|
-40~
+95°C (refer to“Derating Curve”)
|
|
|
Case Temperature
|
+110
°C max.
|
|
|
Working Humidity
|
5%
~ 95% RH non-condensing
|
|
|
Storage Temp., Humidity
|
-55
~ +125°C, 10 ~ 95% RH non-condensing
|
|
|
Temperature Coefficient
|
±0.05%
/ °C
|
|
|
Soldering Temperature
|
1.5mm
from case of 3~5 sec./265°C(max.)
|
|
|
Vibration
|
10~500Hz,
2G 10min./1cycle, period for 60 min. each along X, Y, Z axes
|
|
|
SAFETY & EMC
|
|
|
Item
|
Conditions
|
|
|
Isolation Voltage
|
I/P-O/P：1500Vdc for 3 seconds
|
|
|
Isolation Resistance
|
I/P-O/P
: 1000M Ohms / 500VDC / 25°C / 70% RH
|
|
|
Isolation Capacitance
|
60pF
typ.
|
|
|
EMC Emission
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
Conducted
|
EN55032(CISPR32)
|
N/A
|
|
|
Radiated
|
EN55032(CISPR32)
|
Class A
|
|
|
EMC Immunity
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
ESD
|
BS IEC 61000-4-2
|
Air ±8KV
|
|
|
Radiated Susceptibility
|
BS IEC 61000-4-3
|
3V/m
|
|
|
EFT/Burst
|
BS IEC 61000-4-4
|
±0.5KV
|
|
|
Surge
|
BS IEC 61000-4-5
|
Line-Line ±0.5KV
|
|
|
Conducted
|
BS IEC 61000-4-6
|
3Vrms
|
|
|
Magnetic field immunity
|
BS IEC 61000-4-8
|
1A/m
|
|
OTHERS
|
|
Item
|
Conditions
|
|
MTBF4
|
>1,200,000Hours
|
|
Weight
|
3.0g typ.
|
|
Dimension(L*W*H)
|
17.4mm*7.75mm*11.1mm
|
|
Case Material
|
Plastic case
|
|
Note:
1 Ripple & noise are measured at 20MHz BW with 1uF ceramic
capacitor connect to the output pins.
2 High line to low line.
3 Load regulation is for output load current change from 0% to
100%.
4 MIL-HDBK-217F @25 °C, Ground Benign.
*All specifications are measured at Ta=25°C, humidity <
75%, nominal input voltage, and rated output load unless otherwise specified.
|
|
|
|
|
|
|
|
ABES technology co., ltd.
|
MODEL
SELECTION TABLE: 8:1 1W
|
|
Model Number
|
Input
|
Output
|
Efficiency (%)
|
Capacitor Load
(Max.)
|
|
Voltage (VDC)
|
Current (mA)
|
Voltage (VDC)
|
Current
(mA)
|
|
Nominal
|
Range
|
No Load
|
Full Load
|
|
DID01-W48S03.3
|
48
|
9-75
|
3
|
54
|
3.3
|
0~300
|
77
|
220uF
|
|
DID01-W48S05
|
4
|
53
|
5
|
0~200
|
78
|
220uF
|
|
DID01-W48S09
|
5
|
52
|
9
|
0~111
|
80
|
47uF
|
|
DID01-W48S12
|
5
|
53
|
12
|
0~83
|
78
|
47uF
|
|
DID01-W48S15
|
5
|
52
|
15
|
0~67
|
80
|
47uF
|
|
DID01-W48S24
|
7
|
55
|
24
|
0~42
|
76
|
47uF
|
|
DID01-W48D05
|
48
|
9-75
|
5
|
53
|
±5
|
±0~100
|
78
|
±47uF
|
|
DID01-W48D12
|
7
|
55
|
±12
|
±0~42
|
76
|
±47uF
|
|
DID01-W48D15
|
8
|
54
|
±15
|
±0~33
|
77
|
±47uF
|
|
Note: Efficiency
and input current are measured at nominal input voltage and full load.
Other input to
output voltages may be available. Please contact factory.
|

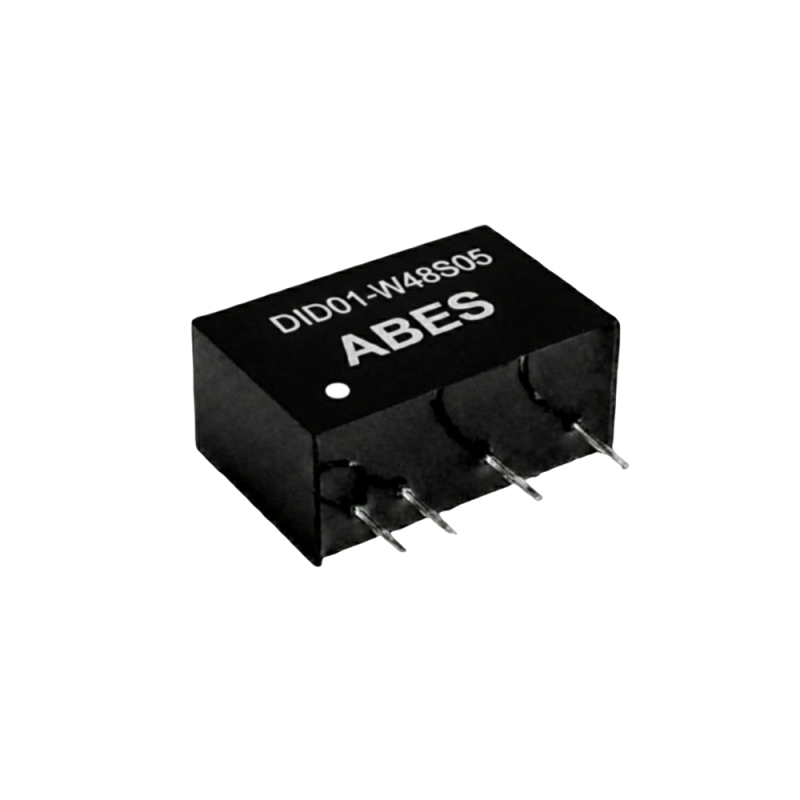

ABES DID01 系列 是一款極其精巧的 1W 8:1 超寬輸入 DC-DC 轉換器，採用 SIP-6 工業封裝。它專為需要節省電路板空間的精密設備設計，提供 1500Vdc 隔離 並支援 無須最小負載 運作。內建濾波功能讓設計更簡潔，在提供 高性價比 的同時，透過過載保護與 UVLO 確保系統在不穩定環境下的高度可靠性。
