ABES technology co., ltd.
|
INPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage Range
|
9~75V
|
|
|
Surge Voltage (100ms
max.)
|
100Vdc
|
|
|
Filter
|
Pi
network
|
|
|
Under Voltage Lockout
|
Start-up
voltage：8.8 Vdc
|
|
|
Shutdown
voltage：8 Vdc
|
|
|
Remote
Control
|
See
page
|
|
|
Protection
|
Fuse
recommended (see page )
|
|
|
OUTPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage
Accuracy
|
±2% max.
|
|
|
Rated
Power
|
10W
|
|
|
Ripple
& Noise1
|
150mVp-p
max.
|
|
|
Line
Regulation2
|
±0.5%
|
|
|
Load
Regulation3
|
±0.5%
|
±1% for 3.3Vdc & ±5Vdc
output
|
|
|
Cross
Regulation
|
±5%
|
Dual：asymmetrical load 25%/100% FL
|
|
|
Switching
Frequency
|
300KHz typ.( PWM )
|
|
|
PROTECTION
|
|
|
Item
|
Conditions
|
|
|
Short
Circuit
|
Protection
type : continuous, recovery
|
|
|
Overload
|
110%~230%
|
|
|
Protection
type : recovers automatically after fault condition is removed
|
|
|
Over
Voltage
|
Clamp
by TVS diode
|
|
|
ENVIRONMENTAL
|
|
|
Item
|
Conditions
|
|
|
Cooling
|
Free-air
convection
|
|
|
Working
Temperature
|
40~
+92°C (refer to“Derating Curve”)
|
|
|
Case
Temperature
|
+110 °C max.
|
|
|
Working
Humidity
|
5%
~ 95% RH non-condensing
|
|
|
Storage
Temp., Humidity
|
-55
~ +125°C, 10 ~ 95% RH non-condensing
|
|
|
Temperature
Coefficient
|
±0.05%
/ °C
|
|
|
Soldering
Temperature
|
1.5mm from case of 3~5 sec./265°C(max.)
|
|
|
Vibration
|
10~500Hz,
2G 10min./1cycle, period for 60 min. each along X, Y, Z axes
|
|
|
SAFETY & EMC
|
|
|
Item
|
Conditions
|
|
|
Isolation Voltage
|
I/P-O/P：3KVdc
|
|
|
Isolation Resistance
|
I/P-O/P : 1000M Ohms / 500VDC / 25°C / 70% RH
|
|
|
Isolation Capacitance
|
1000pF typ.
|
|
|
EMC Emission
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
Conducted
|
EN55032(CISPR32)
|
N/A
|
|
|
Radiated
|
EN55032(CISPR32)
|
Class A
|
|
|
EMC Immunity
EMC Immunity
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
ESD
|
BS IEC 61000-4-2
|
Contact ±4KV
|
|
|
Radiated Susceptibility
|
BS IEC 61000-4-3
|
3V/m
|
|
|
EFT/Burst
|
BS IEC 61000-4-4
|
±0.5KV
|
|
|
Surge
|
BS IEC 61000-4-5
|
Line-Line ±0.5KV
|
|
|
Conducted
|
BS IEC 61000-4-6
|
3Vrms
|
|
|
Magnetic field immunity
|
BS IEC 61000-4-8
|
1A/m
|
|
OTHERS
|
|
Item
|
Conditions
|
|
MTBF4
|
>880,000Hours
|
|
Weight
|
29.0g typ.
|
|
Dimension(L*W*H)
|
50.8mm*25.4mm*11.2mm
|
|
Case Material
|
Six-side shielded case
|
|
Note:
1 Ripple & noise are measured at 20MHz BW with 1uF ceramic
capacitor connect to the output pins.
2 High line to low line.
3 Load regulation is for output load current change from 0% to
100%.
4 MIL-HDBK-217F @25 °C, Ground Benign.
*All specifications are measured at Ta=25°C, humidity <
75%, nominal input voltage, and rated output load unless otherwise specified.
|
|
|
|
|
|
|
|
ABES technology co., ltd.
|
MODEL
SELECTION TABLE: 8:1 1W
|
|
Model Number
|
Input
|
Output
|
Efficiency (%)
|
Capacitor Load
(Max.)
|
|
Voltage (VDC)
|
Current (mA)
|
Voltage (VDC)
|
Current
(mA)
|
|
Nominal
|
Range
|
No Load
|
Full Load
|
|
DIB10-W48S03.3R
|
48
|
9-75
|
10
|
503
|
3.3
|
0~3000
|
82
|
680uF
|
|
DIB10-W48S05R
|
10
|
484
|
5
|
0~2000
|
86
|
680uF
|
|
DIB10-W48S09R
|
10
|
485
|
9
|
0~1100
|
85
|
470uF
|
|
DIB10-W48S12R
|
10
|
478
|
12
|
0~833
|
87
|
330uF
|
|
DIB10-W48S15R
|
10
|
473
|
15
|
0~666
|
88
|
220uF
|
|
DIB10-W48S24R
|
10
|
478
|
24
|
0~417
|
87
|
100uF
|
|
DIB10-W48D05R
|
48
|
9-75
|
10
|
484
|
±5
|
±0~1000
|
86
|
±330uF
|
|
DIB10-W48D12R
|
10
|
478
|
±12
|
±0~417
|
87
|
±150uF
|
|
DIB10-W48D15R
|
10
|
473
|
±15
|
±0~333
|
88
|
±100uF
|

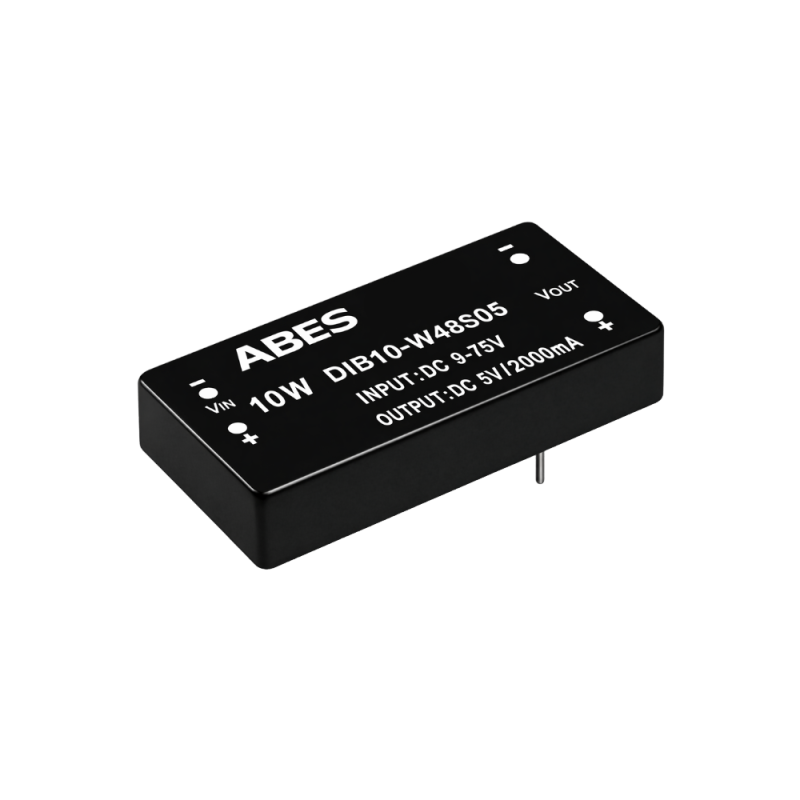

ABES DIB10 系列 是一款專為嚴苛工業環境打造的 10W 隔離式 DC-DC 電源轉換器。採用工業標準的 2"x1" 封裝，具備強大的 8:1 超寬輸入範圍，能有效解決系統中因輸入電壓大幅波動而產生的不穩定問題，顯著降低設備的設計難度與維護成本。
